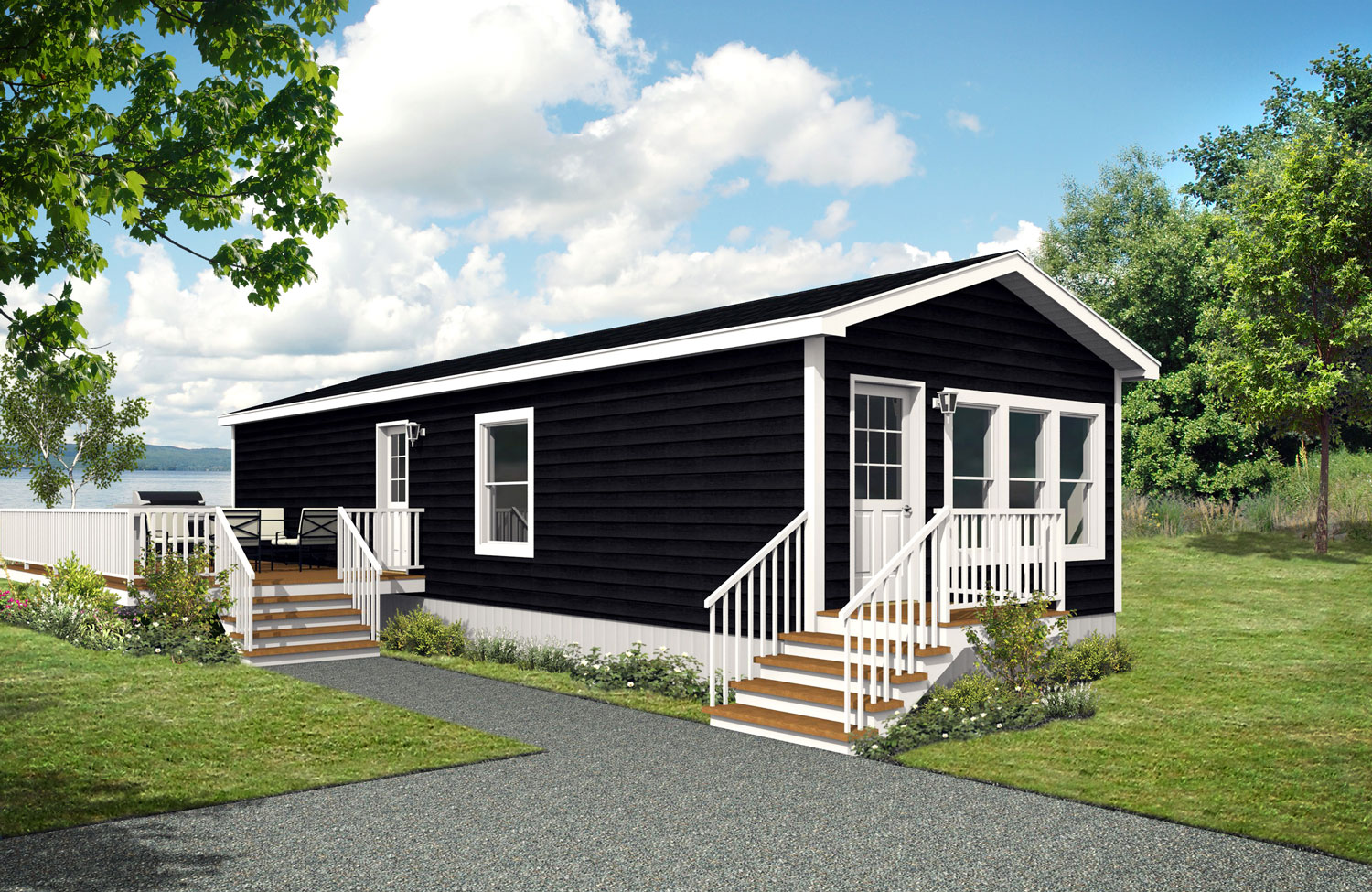

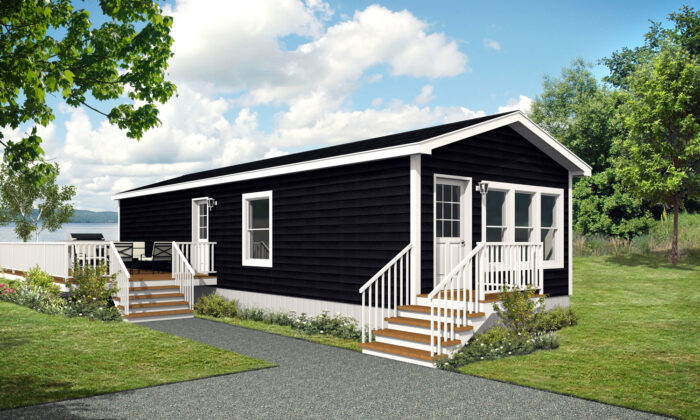

Arbour Cottage
AR-1650
Bedrooms
2
Bathrooms
1
Square Feet
800
Dimensions
16' x 50'
Standard features and specifications
Exterior
- Colour coordinated metal fascia
- Vinyl siding & white vinyl soffit
- 4/12 pitch roof
- 2 Exterior GFI receptacles
- Exterior frost-free tap - kitchen sink
- 30-year architectural fiberglass shingles
- 7/16" roof sheathing
- 16" eave on HE, 12" on long walls
- Separate receptacle for heat tape
- Engineered roof trusses to 2.8 KPA snow load
- 14 & 16 wide's: 2x10 joists at 16" o.c. & 12" tubular frame
- 20 & 22 wide's: 12" Engineered I-Joists at 16" o.c. & 12" tubular frame
- 24 wide's: 14" open web joists at 19.2" o.c. with double LVL
- 3/8" wall sheathing on inside & outside of exterior walls
- Walls: R22 +R10 exterior rigid foam. R32 total
- R60 ceiling
- 2x6 side walls @ 24" o.c. - 8' walls
- 19/32" T&G subfloor
- 12" tubular steel frame with detachable hitch (Except 24' models)
Interior
- Cathedral ceiling throughout (Including deck)
- Decorative vinyl covered drywall
- 6 mil. vapour barrier includes switches and receptacles
- Plush carpet in bedrooms only
- Quality vinyl floor covering
- Ceiling lights in all bedrooms
- Wire only ceiling light in living room
- Pendant light in dining room
- Solid shelving in all closets
- White embossed passage doors with lever handles
- 4" ceramic tile backsplash at kitchen and vanities with tile edging
- 2x4 interior walls
- Vinyl wrap moulding throughout
Exterior Doors
- Insulated steel exterior doors, 36" front and rear (where possible) with peepholes and deadbolts
- Lever door handles
- Coach lights at all exterior doors
- Covered decks receive exterior pot light ILO std coach light
Windows
- Triple Glazed, .98 U Value, Double Low E, Argon Filled & Tinted. Zone D C/A Window w Egress Hinge.
Kitchen
- Adjustable shelves in all cabinets - (2) upper & (1) lower
- Double stainless-steel sink
- Roller drawer slides
- PVC cabinet doors
- 18 cu. ft. frost free refrigerator
- 30" electric range with clock and timer
- 2-speed range hood with light and fan vented to exterior
- White kitchen appliances
- Communication box (empty) at kitchen area
- Single lever faucet with vegetable sprayer
- Upper corner cab - narrow reed glass
- Microwave cabinet with separate circuit (most models)
Bathrooms
- Exhaust fans with humidistat in main bath
- Exhaust fan in ensuite on separate switch
- Towel bar and towel ring (most models) in each bath
- Cosmetic box in main bath
- Showerhead and rod in all baths
- GFI receptacle in all baths
- Walled tub/shower with single lever pressure balanced faucet in all baths
- Single lever faucets in all baths
- Theatrical lights in all baths
Utility Rooms
- HRV system (heating recovery ventilation)
- Dryer vent rough in
- High efficiency gas furnace
- Optional High efficiency oil furnace
- 100-amp electrical panel
- Electric hot water tank
- Shelf over washer/dryer area
- Insulated lines in HWT cavity
Miscellaneous
- Electric smoke/CO detector(s)
- 100-amp service panel
- Main electrical conduit through floor
- White receptacles and switches
- LED Light bulb package
- Programmable thermostat
- Airtight Protocol
*This is not a fully detailed specification. Our factory reserves the right to change specifications, designs, materials and suppliers without notice and without incurring obligations. Homes shown and/or contained herein is from data available at time of printing.
