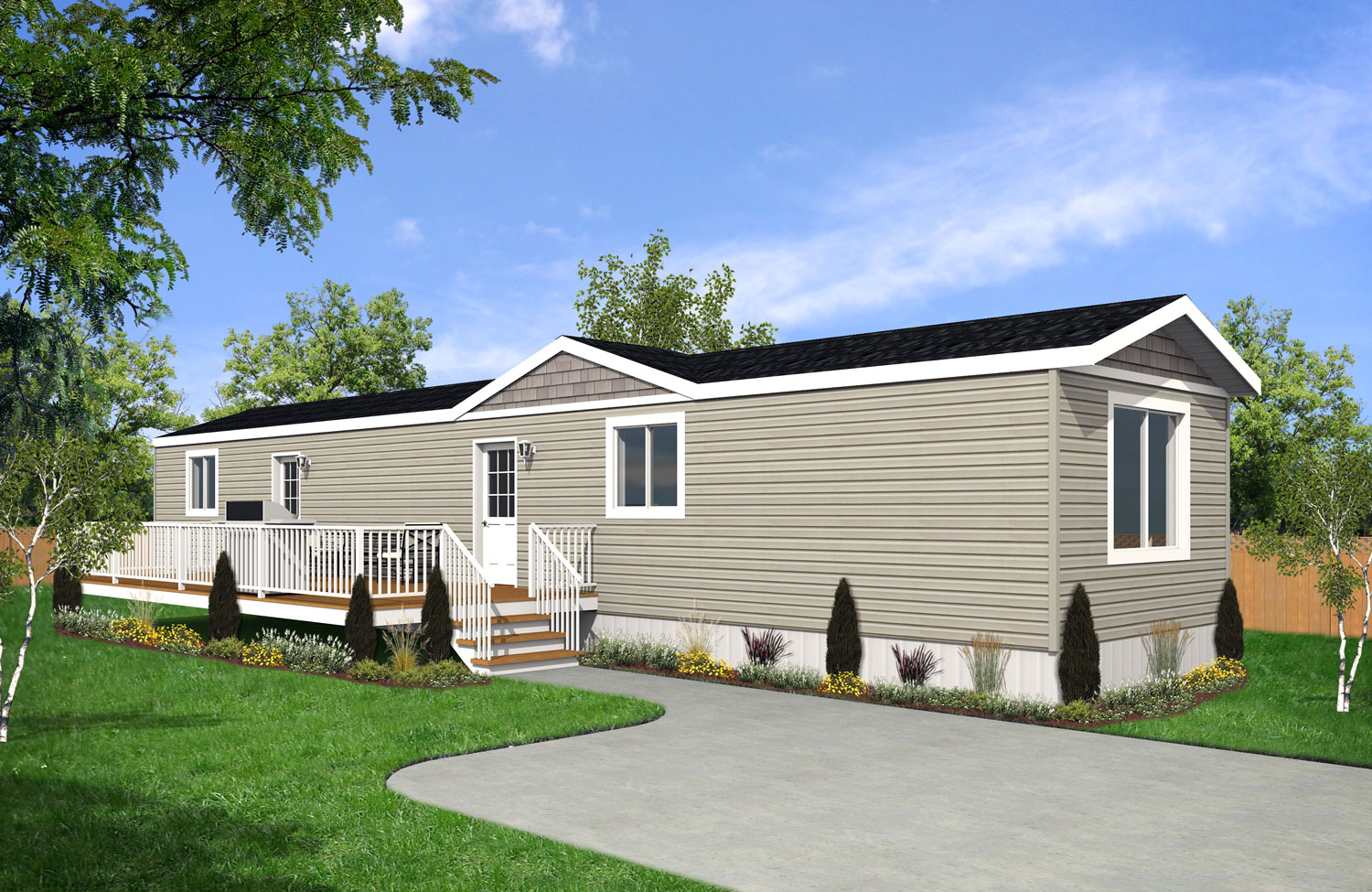

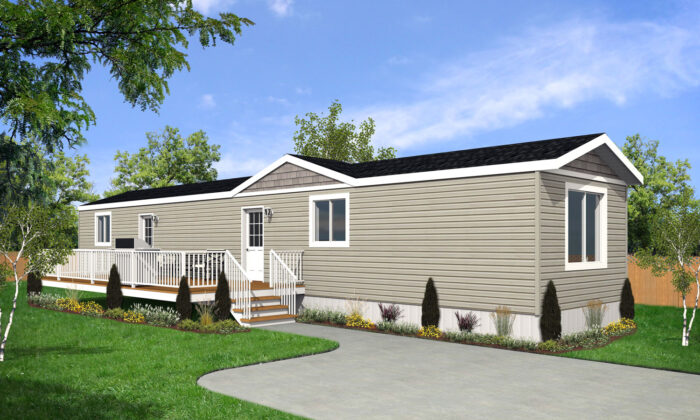

Rocky Mountain
RM-1411
Bedrooms
2
Bathrooms
1
Square Feet
924
Dimensions
14' x 66'
Standard features and specifications
Exterior
- Colour coordinated metal fascia
- Vinyl siding & white vinyl soffit
- 4/12 pitch roof with non-residential eaves (3 sides) and 16" eave on HE (14' wide)
- 4/12 pitch hinged roof with 12" eaves HE & rear, 16" on long walls (24' and 28' wide)
- 2 Exterior GFI receptacles
- Exterior FF tap - kitchen sink
- 30-year architectural fiberglass shingles
- 7/16" roof sheathing
- Perimeter ventilation
- Separate receptacle for heat tape
- 2x8 floor joists 16" o.c.
- 3/8" wall sheathing on inside & outside of exterior walls
- Insulation: Walls: R22+R10 Exterior Rigid Foam
- R60 ceiling; R38 floor
- 2" x 6" side walls @ 24" o.c. - 8' walls
- 12" tubular steel frames with detachable hitch
- 19/32" T&G subfloor
- 8' ceiling height
- Engineered roof trusses to 2.8 KPA snow load
Interior
- 2x4 interior walls
- Textured ceiling throughout
- Decorative vinyl covered drywall
- 6 mil. vapour barrier includes switches and receptacles
- Plush carpet in LR, MBR (Hall & FR where applicable on sectionals)
- Quality vinyl floor covering
- Cathedral LR, DR, Kitchen (14')
- Cathedral throughout (24' & 28')
- Ceiling lights in all bedrooms
- Wire for ceiling light in living room
- Pendant light in dining room
- Solid shelving in all closets
- White embossed interior doors with lever handles
- 4" ceramic tile backsplash at kitchen & vanities with tile edging
- Vinyl wrap moulding throughout
Exterior Doors
- Insulated steel exterior doors, 36" front and rear (where possible) with peepholes and deadbolts
- Lever door handles
- Coach lights at all exterior doors
Windows
- Triple Glazed, .98 U Value, Double Low E, Argon Filled & Tinted. Zone D C/A Window w Egress Hinge.
Kitchen
- Adjustable shelves in all cabinets - (2) upper & (1) lower
- Double stainless-steel sink
- Roller door slides on all drawers
- Microwave cabinet with separate circuit (most models)
- PVC cabinet doors
- 18 cu. ft. frost free refrigerator
- 30" electric range with clock and timer
- 2-speed range hood with light and fan vented to exterior
- White kitchen appliances
- Single lever faucet with vegetable sprayer
- Crown moulding on cabs
- Communication box (empty) at kitchen area
- Upper corner cab - narrow reed glass
Bathrooms
- Exhaust fan with humidistat in main bath
- Exhaust fan in ensuite on separate switch
- Towel bar and towel ring (most models) in each bath
- Cosmetic box in main bath
- Showerhead and shower rod in all baths
- GFI receptacle in all baths
- Walled tub/shower with single lever pressure balanced faucet in both baths
- Single lever faucets in all baths
- Theatrical lights in all baths
- Dual flush toilets
Utility Rooms
- HRV system (heating recovery ventilation)
- Plumbed and wired for washer/dryer
- High efficiency gas furnace
- Optional High efficiency oil furnace
- 100-amp electrical panel
- 50 Gallon Electric hot water tank
- Shelf over washer/dryer area
- Insulated lines in HWT cavity
Miscellaneous
- Electric smoke/CO detector(s)
- 100-amp service panel
- Electrical conduit through floor
- White receptacles and switches
- LED Light bulb package
- Shut off valves, hammer arrestors, vacuum breakers, solar ready
- Pig tail, electrical
- Programmable thermostat
- Airtight Protocol
*This is not a fully detailed specification. Our factory reserves the right to change specifications, designs, materials and suppliers without notice and without incurring obligations. Homes shown and/or contained herein is from data available at time of printing.
